REVOLUTIONARY RELIABILITY

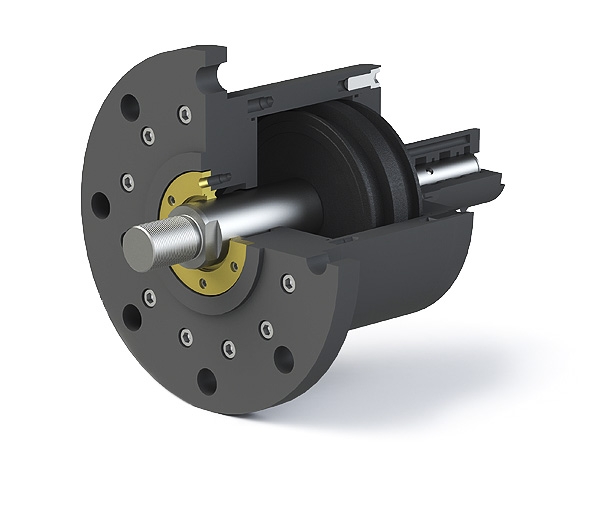

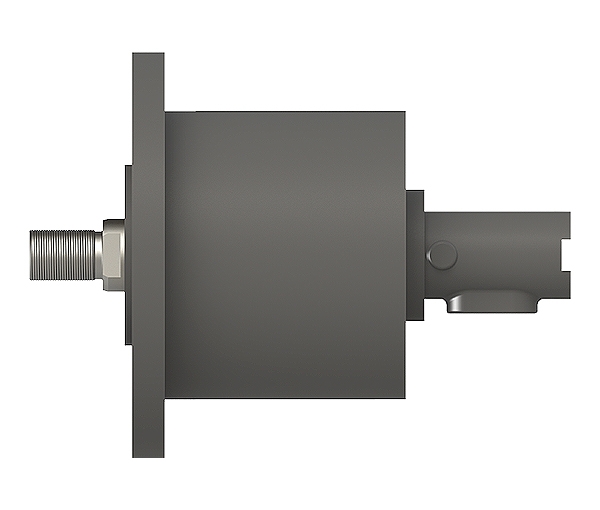

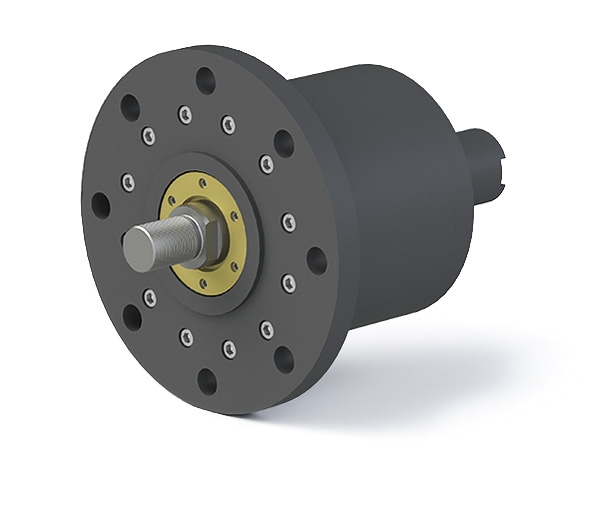

Rotating hydraulic cylinders are essential in industrial applications where components need to rotate at high speeds while engaging linearly with significant force. They are widely used in the metals industry, particularly for rolling mill applications. The design of these cylinders allows for lateral shifting to secure the mandrel tightly against the inside of a coil, even as both the mandrel and cylinder rotate at very high speeds.

Specifications:

• Bores: 3" up to 30" (75 mm to 750 mm)
• Strokes: 2" up to 36" (50 mm to 900 mm)
• Sizes: Imperial or Metric
• Pressure: Up to 5,000 PSI (350 bar)
• Temperature: -60° F to 600° F (-50° C to 315° C)
• Type: Heavy Duty, Air and Hydraulic
• Material: Steel, Stainless Steel, Special Alloys

Features:

• One-piece piston
• Non-rotating hydraulic oil distributor standard
• Self-adjusting packing
